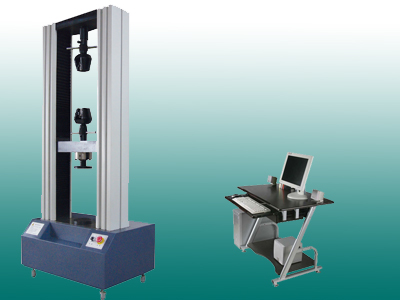

The WDW-Series Universal Testing Machines range is designed for quick and reliable tensile, compression, flexure (bending), shear, peel, fatigue cycling, and constant load tests on metals, composites, alloys, plastics, elastomers, textiles, and finished products.
Main type and technical specification and parameters schedule:
|
type |
Max.test force(KN) |
Max.tensile distance |
Mainframe size |
Mainframe form |
|
WDW-50 |
50 |
600mm |
800*500*1800 |
door frame structure |
|
WDW-100 |
100 |
600mm |
1000*550*2100 |
door frame sturcture |
|
WDW-200 |
200 |
650mm |
1100*780*2530 |
door frame sturcture |
|
WDW-300 |
300 |
650mm |
1200*820*2630 |
door frame sturcture |
Description:
Technical index:
一．Main technical index:
1. max. test force: 2/5KN
2. effective measurement range: 1%-100%FS of test force
3. precision: every grade is better than ±1%
4. test force resolution: 0.05%/FS of every grade range
5. regulation range of speed: 0.05-500mm/min
6. speed precision: better than ±1%
7. measurement range and precision of displacement:0-600mm; better than ±1%
8. max. travel of beam: 800mm
9. tensile test travel: 0-600mm
10.effective width: 370mm
11.protection function: automatically stop once exceed 2%-5% of max. test force
12.main body form: door frame structure
13.power supply: single-phase 220V +10%
14.dimension (length*width*heigth): 670*500*1650mm
二．Structure,function and characteristics:
1. It adopts suspending arm structure, main body and electric units coordinate and connect, and has a good appearance.
2. It adopts Fuji alternating servo speed regulating system to control high precision and high frequency alternating servo electrical machine and drive imported precision planetary type low noise speed reducer and drive precision ball screw shaft, realizing speed regulation in a large scale and test process is smooth and efficient.
3. It realizes the test of tension,compression,bending,peeling off of aluminium products,paper,PVC,metallic bowsprit,tube and pipe with flexible and complete accessories.
4. It adopts brand computer to realize setting of test parameter and control of test process,data acquisition,processing,analysis and display(test data includes: upper and lower yield point,tensile strength,breaking strength,modulus of elasticity,elongation of every point, δ0.2,etc.)with precision control and meaurement.
5. It is equipped with appropriative software of electrical universal testing machine of Windows98/XP/ME system and measure property and parameter of materials according to national standard and users` requirements and process test data,then print out test curve and report.it also has the function of magnification,comparison, traverse,very intelligent and convinent.
6. It can regulate the lifting speed of beam when the specimen is clamped and operates flexibly and can switch arbitrarily.
7. It can automatically return to the initial position after the test,very efficient and quick.
8. It has function of limit protection and overload protection,very reliable and safe.
9. It can create a strong database, and the database can store,inquire,transfer at any time,and can realize data transmission and transform with users` local area network and internet.
三．Basic configration:
1.main body(high precision ball screw) one set
2.electrical control system(imported with original packaging alternating servo electrical machine and its speed regulating system,elelctrical control sysytem, data acquisition,processing, display system) one set
3. imported precision speed reducer one set
4. high precision feed sensor one set
5. deformation measurement equipment(imported photoelectric encoder) one set
6.accessories:
6.1 tension accessory one set
6.2 compression accessory one set
6.3 bend accessory one set
7.brand computer one set
8.printer(A4) one set
9. appropriative software of testing machine(notes:the form of test report can made according to users` requirements)
|
