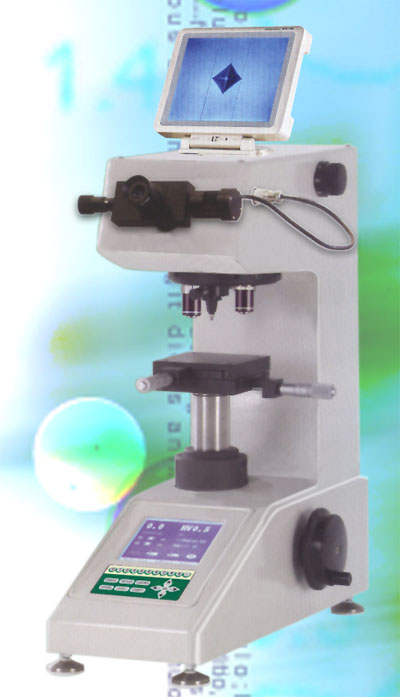

VCCD-5D1帶視頻裝置數顯維氏硬度計
VCCD-5D1 Video Digital Vicker's Hardness Tester
VCCD-5D1型帶視頻裝置數顯維氏硬度計，是在VD-5D1數顯維氏硬度計基礎上，增加視頻測量裝置的新一代維氏硬度計。視頻測量裝置，由CCD測量系統、彩色7英寸液晶顯示器等部件組成。配備該裝置后，使原來在硬度計目鏡上顯示的壓痕，直接顯示在液晶顯示器上。工作過程更直觀，測量更精確，避免用眼疲勞和長時間測量引起的人為誤差，并能使工作過程多人同時觀察。該機是現代實驗室、試驗室、教學和工廠檢測等理想的硬度計。
Vicker's Low Load Hardness Tester Model VC-5D1 is a new hi-tech product integrating precision mechanical and photoelectrical technologies, adding that going together with and seeing the new generation measures the device shows minute details the degree of hardness accounts.Seeing the measures the device, being measured by CCD system, color 7 inches of liquid crystal displays etc. parts constitute.The equipment shoulds be made after equiping to show in degree of hardness accounting eyes originally of press the to show at the liquid crystal display the top directly.The work process even keeps the view, measuring more accurate, avoid using eye fatigue with artificial error margin that long-playing diagraph cause, combining can make work process many the person observes at the same time.That machine is a degree of hardness that modern laboratory, laboratory, teaching examine the etc. ideal with the factory to account.
|
|
試驗力: 2.94N(0.30Kgf),9.80N(1Kgf),29.4N(3Kgf),49.0N(5Kgf)
示值允許差: ±3.0%
試驗力施加方法:自動加御試驗力
測量顯微鏡放大倍率:200x(for measuring) 100x(for observation)
試驗力保荷時間:5-60s(范圍以5秒為單位)
最小檢測單位:0.5μm
試件最大高度:85mm
壓頭中心到機壁最大距離:120mm
主機重量:約35kg
電源:AC220V/50HZ
外型尺寸（長×寬×高）：（490×185×515)mm
硬度值范圍：
5HV－2500HV Spectifcantions
Testing Pressure: 2.94N(0.35Kgf),9.80N(1Kgf),29.4N(3Kgf),49.0N(5Kgf)
Error Range in Display: ±3.0%
Pressure Loading & Unloading: 8HV0.3-2500HV10
Magnification of Microscope: 200x(for measuring) 100x(for observation)
Pressure Holding Time:5-60s
Min. Measurable Unit:0.5μm
Max. Height of Sample:85mm
Distance from Indenter's center to outerwall:120mm
Main Body Weight:Appro. 35kg
Power Supply:AC220V/50HZ
Machine Size(L×W×H)(490×185×515)mm
